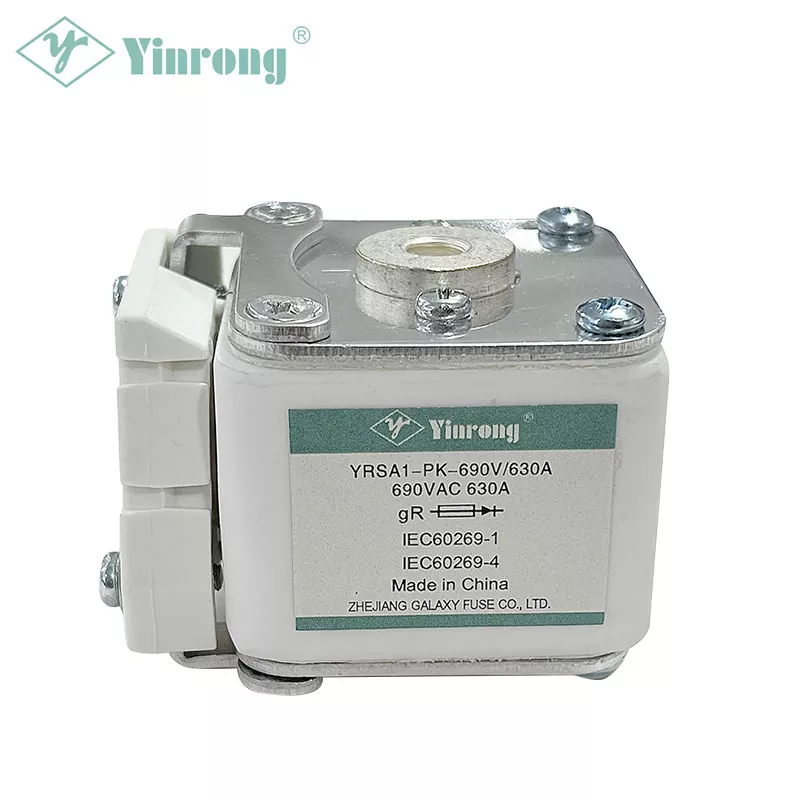

Understanding the 690VAC 630A Square Body Ultra Fast gR Fuse

In high-power electrical applications, fuses play a critical role in protecting circuits from overcurrent conditions. One such specialized fuse is the 690VAC 630A Square Body Ultra Fast gR Fuse, which is widely used in industrial, renewable energy, and power electronics applications. This blog will explore its features, benefits, and applications to help you understand why it's a preferred choice for circuit protection.

What is a 690VAC 630A Square Body Ultra Fast gR Fuse?

A Square Body Ultra Fast gR Fuse is a high-speed fuse designed for rapid response to overcurrent conditions. It is specifically rated for 690 volts AC (VAC) and 630 amps (A), making it suitable for applications that require precise and quick circuit protection. The "gR" designation indicates that the fuse is designed for both full-range and partial-range protection in semiconductor and power conversion systems.

Applications

The 690VAC 630A Square Body Ultra Fast gR Fuse is widely utilized in industries requiring fast and reliable protection. Common applications include:

- Renewable Energy Systems: Used in solar inverters and wind power converters to safeguard electrical components.

- Power Electronics: Protects rectifiers, IGBT modules, and semiconductor devices.

- Industrial Motor Drives: Ensures the safe operation of variable frequency drives (VFDs) and high-power electric motors.

- UPS Systems: Protects uninterruptible power supplies from unexpected power surges and faults.

- Railway & Transportation: Used in electrical systems for trains, trams, and high-speed rail applications.

Advantages of Using the 690VAC 630A Ultra Fast gR Fuse

- Enhanced Safety: Reduces risk of electrical fires and damage to expensive components.

- Increased Equipment Lifespan: Prevents excessive electrical stress on circuits.

- Efficient Performance: Ultra-fast acting fuse ensures minimal downtime in case of faults.

- Versatile Applications: Can be used in a wide range of power electronics and industrial settings.

Choosing the Right Fuse for Your Needs

When selecting a fuse for your system, consider:

- Voltage and Current Ratings: Ensure compatibility with your circuit requirements.

- Speed Class: Ultra-fast fuses like this one are ideal for semiconductor protection.

- Environmental Conditions: Ensure the fuse can operate in your specific industry conditions.

The 690VAC 630A Square Body Ultra Fast gR Fuse is an essential component for industries requiring high-speed, reliable circuit protection. Whether in renewable energy, industrial motor drives, or power electronics, this fuse ensures operational efficiency, safety, and longevity of sensitive electrical components. By understanding its features and applications, you can make an informed decision when choosing the right fuse for your needs.
