Understanding Square Body Ultra Fast aR Fuses: Unique Features and Differences from Other Fuses

Fuses are essential components in electrical circuits, providing critical protection against overcurrent and short-circuit conditions. Among the various types of fuses available, the Square Body Ultra Fast aR Fuse stands out due to its unique characteristics and superior performance. In this blog, we will delve into what a Square Body Ultra Fast aR Fuse is and explore how it differs from other types of fuses.

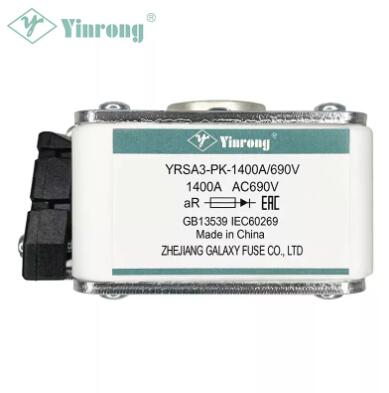

What is a Square Body Ultra Fast aR Fuse?

A Square Body Ultra Fast aR Fuse is a specific type of fuse designed to protect sensitive electrical and electronic components by responding extremely quickly to overcurrent conditions. The "aR" in its designation stands for "associated fuse," indicating that it is intended to work in conjunction with other protective devices, typically in industrial and high-power applications.

Key Characteristics of Square Body Ultra Fast aR Fuses:

- Ultra-Fast Response Time: These fuses are engineered to react almost instantaneously to overcurrent situations, minimizing the risk of damage to equipment.

- High Breaking Capacity: They can safely interrupt high fault currents without causing harm to the electrical system.

- Square Body Design: The square body shape provides compactness and ease of installation, particularly in densely packed electrical panels.

- Current Limiting: They are designed to limit the amount of current that can pass through, reducing the potential for damage during a fault condition.

How Does a Square Body Ultra Fast aR Fuse Differ from Other Types of Fuses?

1. Response Time

Square Body Ultra Fast aR Fuse:

- These fuses have an exceptionally fast response time, making them ideal for protecting semiconductor devices and other sensitive equipment that cannot tolerate even brief overcurrent events.

Other Types of Fuses:

- Standard fuses, such as slow-blow or time-delay fuses, are designed to respond more slowly to overcurrent conditions. This delay allows temporary current surges to pass without interrupting the circuit, which is beneficial for applications with inrush currents like motors.

2. Design and Form Factor

Square Body Ultra Fast aR Fuse:

- The square body design is compact and space-efficient, making it easier to install in confined spaces and modern electrical systems where space is at a premium.

Other Types of Fuses:

- Cylindrical and blade-type fuses are more common in automotive and residential applications. Their shapes can be less space-efficient in industrial settings compared to square body designs.

3. Breaking Capacity

Square Body Ultra Fast aR Fuse:

- These fuses are designed with a high breaking capacity, meaning they can handle and safely interrupt high fault currents without damage.

Other Types of Fuses:

- While many fuses have adequate breaking capacities for their intended applications, they might not match the high fault current handling capabilities of aR fuses, especially in industrial settings.

4. Current Limiting Features

Square Body Ultra Fast aR Fuse:

- As current-limiting devices, these fuses restrict the peak current that can pass through during a fault, thereby protecting downstream components more effectively.

Other Types of Fuses:

- Not all fuses are current-limiting. Many standard fuses will allow higher currents to pass through until they blow, which could potentially damage sensitive equipment.

Applications of Square Body Ultra Fast aR Fuses

Due to their unique properties, Square Body Ultra Fast aR Fuses are particularly well-suited for:

- Industrial Power Systems: Protecting machinery and equipment from high fault currents.

- Semiconductor Protection: Safeguarding sensitive electronic components that require rapid disconnection from overcurrent conditions.

- Renewable Energy Systems: Managing the variable power outputs in solar and wind installations.

- Data Centers: Ensuring the reliability and protection of critical IT infrastructure.

Conclusion

Square Body Ultra Fast aR Fuses represent a specialized solution within the broader category of fuses, offering unparalleled protection for sensitive and high-power applications. Their ultra-fast response time, high breaking capacity, and current-limiting features set them apart from other types of fuses, making them indispensable in many industrial and advanced technological environments.

Understanding the differences and advantages of these fuses helps engineers and technicians make informed decisions to enhance the safety and reliability of their electrical systems. Whether you are safeguarding delicate semiconductor devices or managing high-power industrial equipment, Square Body Ultra Fast aR Fuses provide the robust protection needed to ensure operational integrity and longevity.
