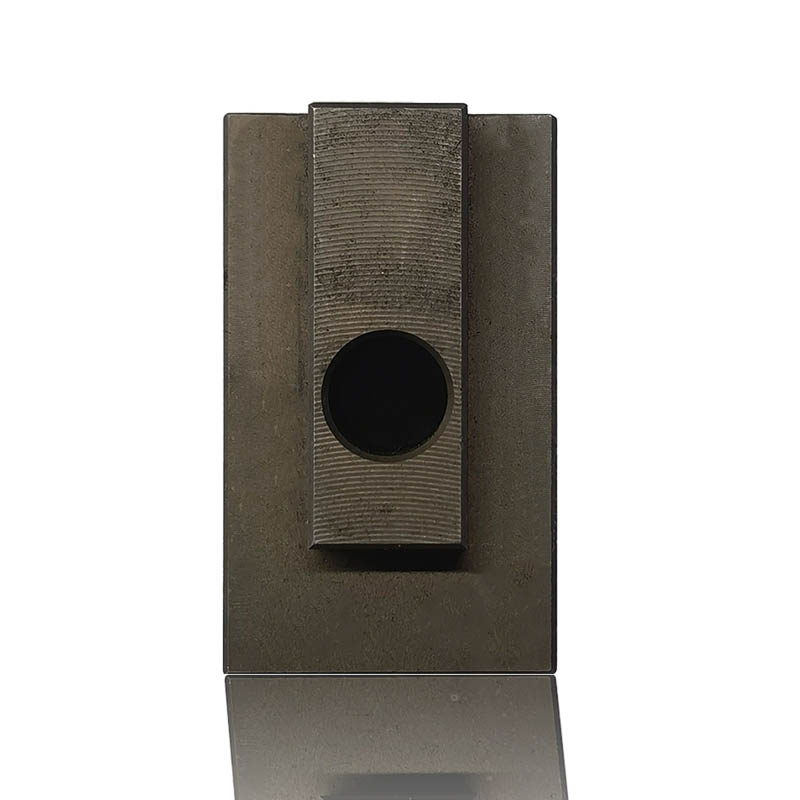

The function of Precision Support Jaw Block

 The Precision Support Jaw Block is a mechanical component typically used in machining, metrology, or workholding applications. Its primary function is to provide accurate and stable support to a workpiece or part during operations like machining, inspection, or assembly. Here's a breakdown of its key functions:

Functions of a Precision Support Jaw Block:

Support and Stability:

It helps stabilize a workpiece, preventing movement or vibration that could lead to inaccuracies during machining or inspection.

Precision Positioning:

The block allows for precise placement and alignment of the workpiece, which is critical in high-tolerance operations.

Clamping and Holding:

In some configurations, it may include jaws that clamp onto the workpiece, holding it firmly in position.

Height and Angle Adjustment:

Some precision support jaw blocks are adjustable, enabling the user to set the height or angle to match the geometry of the part being supported.

Protection from Deformation:

By distributing clamping forces more evenly, it can help prevent the part from deforming under pressure, especially for delicate or thin-walled parts.

Repeatability:

Ensures that parts are consistently supported in the same position for repeat operations, contributing to consistent quality and efficiency.
