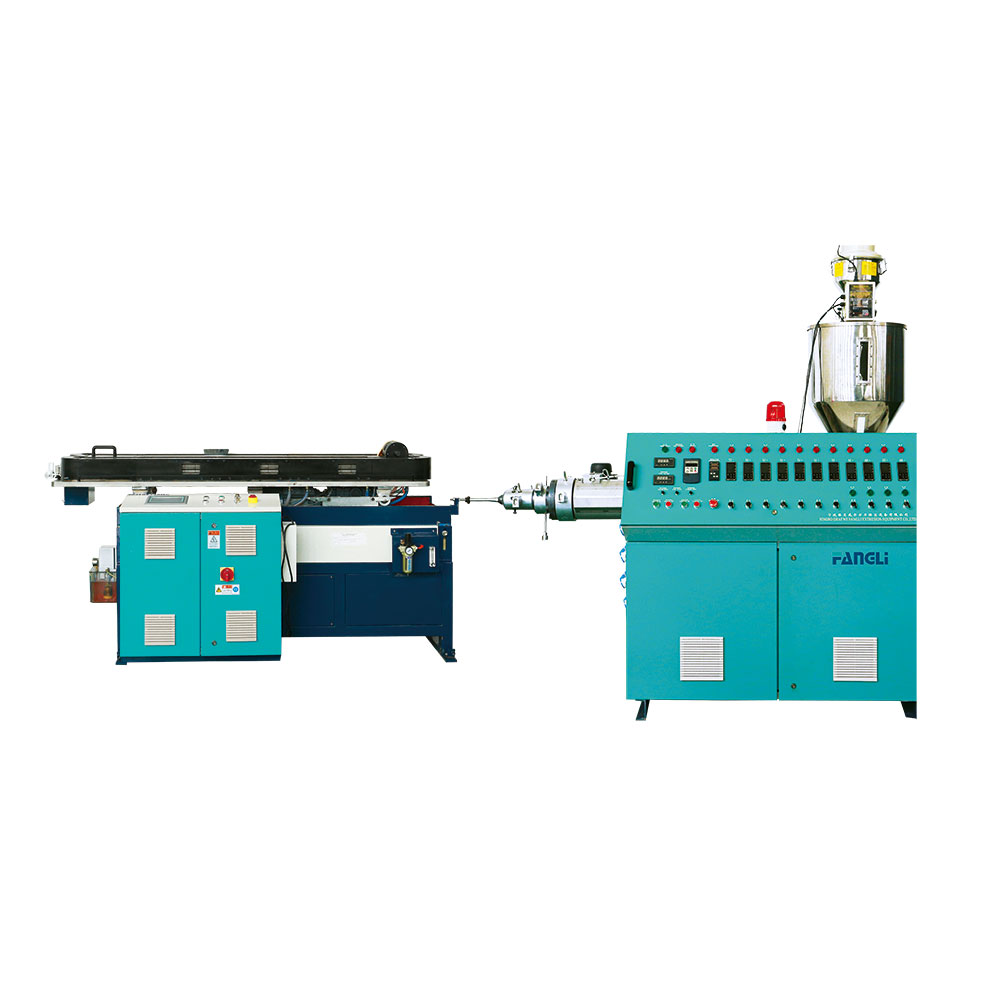

In the world of industrial manufacturing, consistency is key to producing high-quality products that meet stringent specifications and standards. Single wall corrugated pipes, essential for various applications ranging from drainage systems to cable conduits, rely on precise corrugation patterns for optimal performance. Single wall corrugated pipe extrusion lines are meticulously engineered to ensure the uniformity of corrugation patterns along the length of the pipe. In this blog, we'll explore how these extrusion lines achieve such consistency, highlighting the techniques and technologies involved in maintaining uniform corrugation patterns.
1. Precise Die Design
At the heart of the extrusion process lies the die head, responsible for shaping the molten polymer into the desired corrugated profile. Single wall corrugated pipe extrusion lines feature die heads meticulously designed to ensure precise corrugation patterns. Advanced CAD/CAM software is used to design die heads with intricate flow channels and profiles, optimizing material distribution and ensuring uniformity in corrugation across the pipe's length.
2. Optimal Material Flow Control
Uniform corrugation patterns depend on consistent material flow throughout the extrusion process. Single wall corrugated pipe extrusion lines employ sophisticated material handling and control systems to ensure optimal material flow from the extruder to the die head. Extruders are equipped with precision screw designs and temperature control systems to maintain consistent material viscosity and flow rates, minimizing variations in corrugation patterns.
3. Continuous Monitoring and Adjustment
Real-time monitoring and control systems play a crucial role in maintaining consistent corrugation patterns along the length of the pipe. Sensors and cameras are deployed throughout the extrusion line to monitor key parameters such as material temperature, pressure, and flow rate. Any deviations from the desired specifications are promptly detected, and automated adjustments are made to correct the process parameters, ensuring uniform corrugation patterns.
4. Inline Quality Inspection
To verify the uniformity of corrugation patterns, single wall corrugated pipe extrusion lines are equipped with inline quality inspection systems. High-resolution cameras and sensors inspect the extruded pipes as they pass through the production line, capturing detailed images and data of the corrugated profiles. Any deviations or defects in the corrugation patterns are identified in real-time, allowing operators to take corrective actions to maintain consistency.
5. Die Head Cooling and Calibration
Die head cooling and calibration are critical steps in ensuring consistent corrugation patterns in single wall corrugated pipe extrusion lines. Precision cooling systems are employed to maintain the die head at optimal temperatures, preventing overheating and distortion of the corrugated profiles. Additionally, calibration tools and fixtures are used to fine-tune the die head settings and ensure uniformity in corrugation across the pipe's length.
6. Operator Training and Expertise
Skilled operators play a vital role in maintaining the consistency of corrugation patterns in single wall corrugated pipe extrusion lines. Operators undergo comprehensive training and certification programs to familiarize themselves with the equipment, processes, and quality standards. Their expertise allows them to monitor production closely, identify potential issues, and implement corrective actions to ensure uniformity in corrugation patterns.
Conclusion: Precision in Production
In conclusion, single wall corrugated pipe extrusion lines exemplify precision and consistency in maintaining uniform corrugation patterns along the length of the pipe. Through precise die design, optimal material flow control, continuous monitoring and adjustment, inline quality inspection, die head cooling and calibration, and operator training and expertise, these extrusion lines ensure that each pipe meets strict specifications and standards. By embracing these techniques and technologies, manufacturers uphold their commitment to delivering high-quality products that meet the needs of diverse applications, ensuring reliability and performance in the field.
