Key components and steps involved in a gypsum wall panel production line

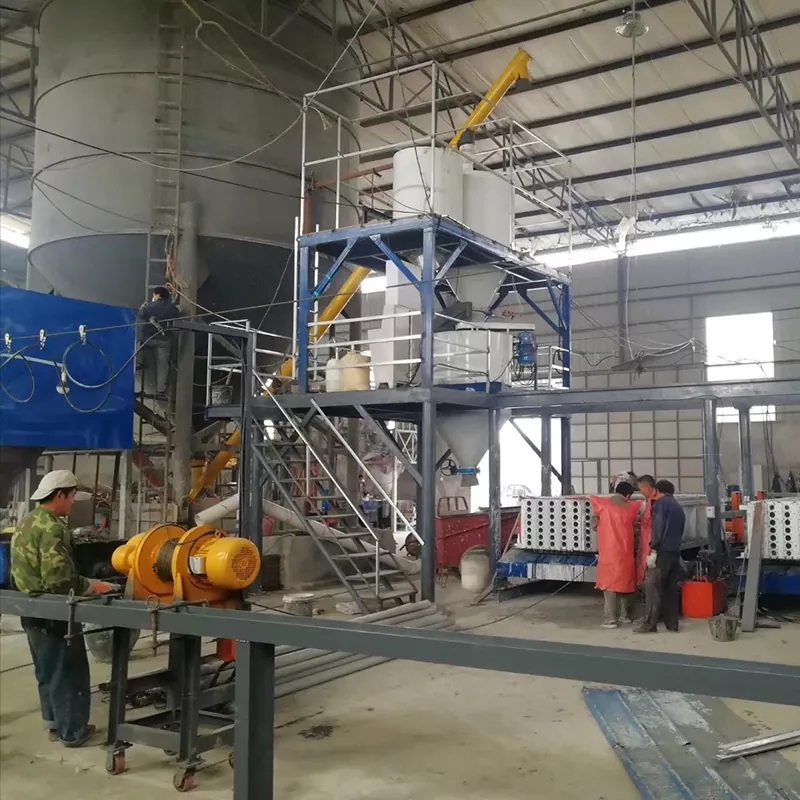

A gypsum wall panel production line is a manufacturing process used to produce gypsum-based wall panels or boards for interior and exterior construction applications. Gypsum wall panels are known for their fire resistance, soundproofing qualities, and versatility in design. The production line typically involves several stages and equipment for the mixing, shaping, drying, and finishing of gypsum panels. Here is an overview of the key components and steps involved in a gypsum wall panel production line:

1. Raw Materials Preparation:

   - Gypsum: The primary raw material is gypsum, usually in the form of natural gypsum ore or synthetic gypsum (from flue gas desulfurization processes).

   - Additives: Various additives such as accelerators, retarders, and water-reducing agents may be added to the gypsum to control setting time and improve performance.

   - Fiber Reinforcement: Depending on the application, fibers like cellulose, glass, or synthetic fibers may be added to enhance the panel's strength and durability.

2. Gypsum Mixing:

   - The raw materials are mixed together in a batch mixer to form a homogenous gypsum slurry or paste. The mixing process ensures even distribution of additives and fibers.

3. Forming and Shaping:

   - The gypsum slurry is poured onto a moving conveyor belt or a continuous forming machine.

   - The slurry is then spread evenly and shaped into the desired thickness and dimensions using a forming system, which may include rollers, molds, and presses.

4. Setting and Hardening:

   - As the shaped gypsum panels move along the conveyor, they undergo a setting and hardening process. Gypsum sets through a process called hydration, where it reacts with water to form a crystalline structure.

   - The panels may be cut to size during this stage.

5. Drying:

   - The partially hydrated gypsum panels are transferred to a drying chamber or kiln, where excess moisture is removed through controlled heating.

   - The drying process is critical to ensure the panels achieve their desired strength and dimensional stability.

6. Cutting and Edge Trimming:

   - After drying, the gypsum panels are cut into standard sizes and their edges are trimmed to ensure a clean, uniform appearance.

7. Surface Treatment and Finishing:

   - The panels may undergo surface treatments, such as painting, coating, or laminating, to achieve specific performance characteristics or aesthetics.

   - Surface textures and designs may also be applied.

8. Quality Control and Inspection:

   - The finished gypsum panels undergo quality control checks to ensure they meet the required standards for strength, thickness, and appearance.

9. Packaging and Distribution:

   - The final step involves packaging the gypsum panels for distribution to construction sites or retail markets.

Gypsum wall panel production lines vary in scale and complexity, from small-scale manual operations to highly automated industrial processes. The choice of equipment and technology depends on factors like production volume, product specifications, and available resources.
